Hot air circulation oven, after multiple upgrades and replacements, has reached the domestic and international level;

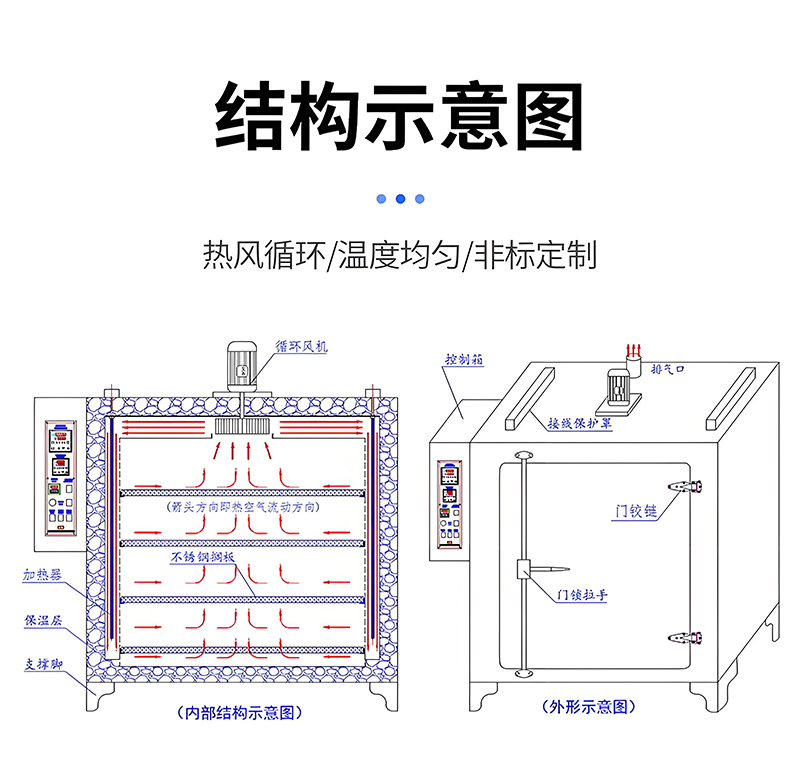

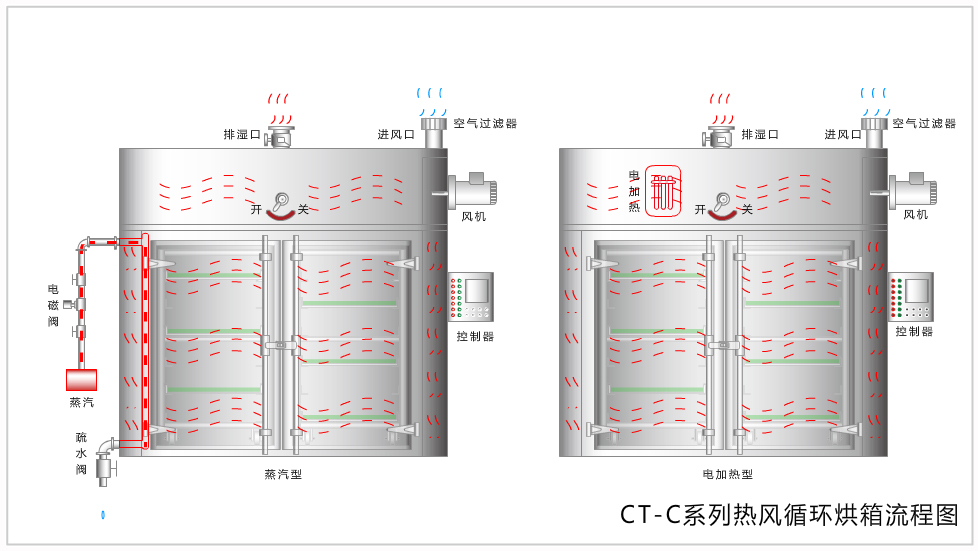

After multiple modifications, the CT-C series oven has been formed, which all uses axial flow fans, is equipped with an automatic constant temperature control system, and has a backup computer control system for selection. The thermal efficiency reaches about 70%. It uses steam or electricity as a heat source and uses an axial flow fan to heat the air through convective heat exchange in the heat exchanger. The hot air flows laminar through the drying plate and transfers heat to the material. Continuously replenishing fresh air and continuously expelling humid and hot air to ensure appropriate relative humidity inside the oven. The major feature of this series of ovens is that some of the hot air circulates inside the oven, and the entire circulation process is enclosed, thereby enhancing heat transfer and saving energy.

1. Widely applicable and capable of drying various materials, it is a universal drying equipment.
2. Most of the hot air circulates inside the box, with high thermal efficiency and energy savings.
3. By utilizing forced ventilation, the box is equipped with adjustable air distribution plates, ensuring even drying of materials.
4. The heat source can be steam, thermal oil, hot water, electricity, far-infrared, etc., with a wide range of choices.
5. Widely applicable and capable of drying various materials, it is a universal drying equipment.
6. The temperature range is wide, and according to user requirements, it can reach room temperature to 350 ℃
7. The whole machine has low noise, balanced operation, temperature self-control, and easy installation and maintenance.

This series of hot air circulation ovens is a universal drying equipment with a wide adaptability, widely used for heating, curing, drying and dehydration of materials and products in industries such as pharmaceuticals, chemicals, food, light industry, and heavy industry. Such as raw materials, herbal medicines, traditional Chinese medicine decoction pieces, powders, granules, granules, packaging bottles for small and large honey pills, pigments, dyes, dehydrated vegetables, dried fruits and vegetables, sausages, plastic resins, electrical components, baking paints, etc.

1. Heating sources include steam, electricity, far-infrared, and electric steam for users to choose from.
2. Usage temperature: Steam heating at 50-140 ℃.
3. Electricity usage and far-infrared temperature range from 50-350 ℃.
4. Equipped with self-control system and computer control system for users to choose from.
5. The commonly used steam pressure is 0.2-0.8Mpa (0.2-8kg/cm2).
6. Equipped with electric heating, calculated according to Type I, 15KW, practical 5-8kw/h.
7. Special requirements shall be specified at the time of ordering.
8. The price of non-standard ovens is negotiable.
9. If the operating temperature is greater than 140 ℃ or less than 60 ℃, it should be specified when ordering.

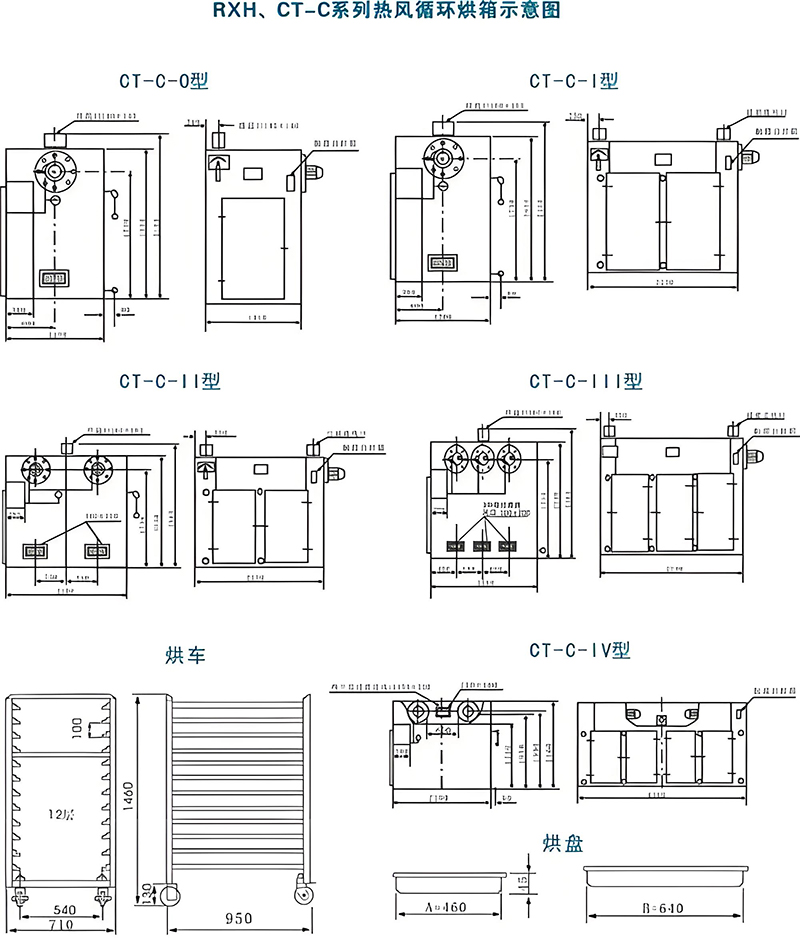

10. Our factory produces drying cars with uniformly sized drying plates that can be interchanged.
11. Drying tray size: 460 × 640 × 45mm.

Studio size: Designed according to any size required by the user;
Temperature parameters: designed according to technical indicators such as temperature range and temperature uniformity required by the user;
Structural types: integral, assembled;
Heating types: electric heating, fuel oil, gas heating, steam heating, mixed heating;
Hot air circulation method: Choose a reasonable hot air circulation method according to the different placement of the baked products, such as single circulation of side air blower, double circulation of top air blower, large circulation before and after air blower, etc;
Door opening methods: front opening door, front and rear opening door, top opening door, lifting door;
Workpiece conveying methods: trolley type, roller conveyor type, plate chain type, mesh belt type, push rod type;
Trolley drive modes: manual, blunt gear pin rack drive, traction trolley drive, coiler drive, roller drive;
Temperature control methods: digital display instrument temperature control, time proportional temperature control instrument temperature control, domestic intelligent (program) temperature control instrument temperature control, imported intelligent (program) temperature control instrument temperature control.
