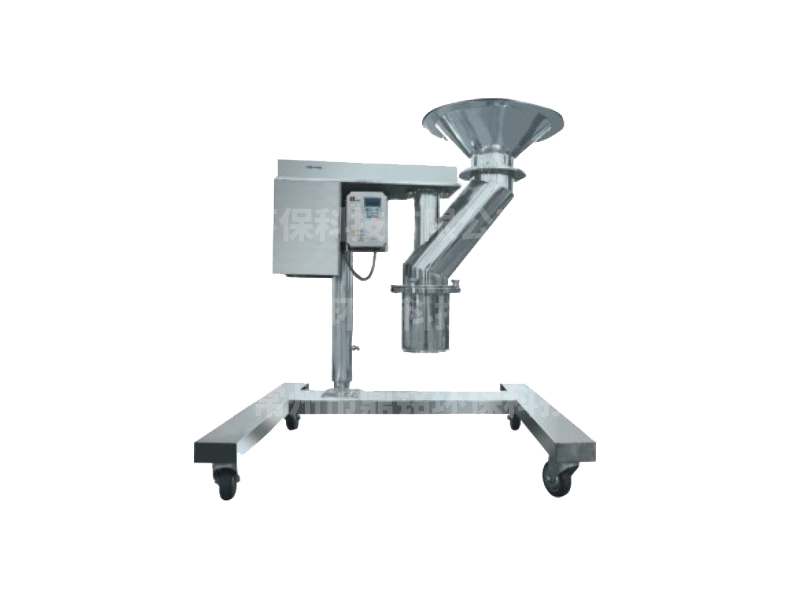

KZL series fast granulator
Product Description:Low heat generation and minimal dust during work. The stator screen is made of stainless steel plate and is not easily damaged. The gap between the crushing knife and the sieve can be adjusted. Can handle sticky, tree like, heat sensitive, and moist materials.
Hotline:15189748872
Details
Collection
Overview

Low heat generation and minimal dust during work.
The stator screen is made of stainless steel plate and is not easily damaged.
The gap between the crushing knife and the sieve can be adjusted.
Can handle sticky, tree like, heat sensitive, and moist materials.

Application

This machine is suitable for crushing and sorting particles in industries such as Chinese and Western medicine, food, chemical pigments, and feed.
The particle shapes and specifications obtained through various granulation processes and equipment vary. After granulation, the particles are cut by the high-speed rotating blade combination of this machine and discharged through the mesh plate to obtain particles with basically the same shape and specifications.
All parts of this machine are made of stainless steel, with polished surfaces, making assembly, disassembly, and cleaning very convenient

Technical Specifications
model
100
180
300
Stator diameter (mm)
100
180
300
Stator length (mm)
96
178
305
Production capacity (kg/h)
20-150
100-1500
500-2500
Power (kw)
0.75
1.5
5.5
Rotational speed (rpm)
180-1400
175-1400
200-1400
