30B series crusher
Product Description:1. This crushing unit consists of a crusher, an ESC material collection box, and an ESC vacuum cleaner. Resolve the issue of dust flying during the crushing process of materials. 2. The working principle of this machine is that the material enters the crushing chamber and is crushed by the impact, shear, friction, and mutual impact of the teeth between the high-speed rotating movable and fixed toothed discs. After being screened by a sieve, it becomes the required powder. 3. The crusher, material collection box, and vacuum cleaner of this crushing unit are all made of stainless steel materials···
Hotline:15189748872
Details
Collection
Structural principle and function

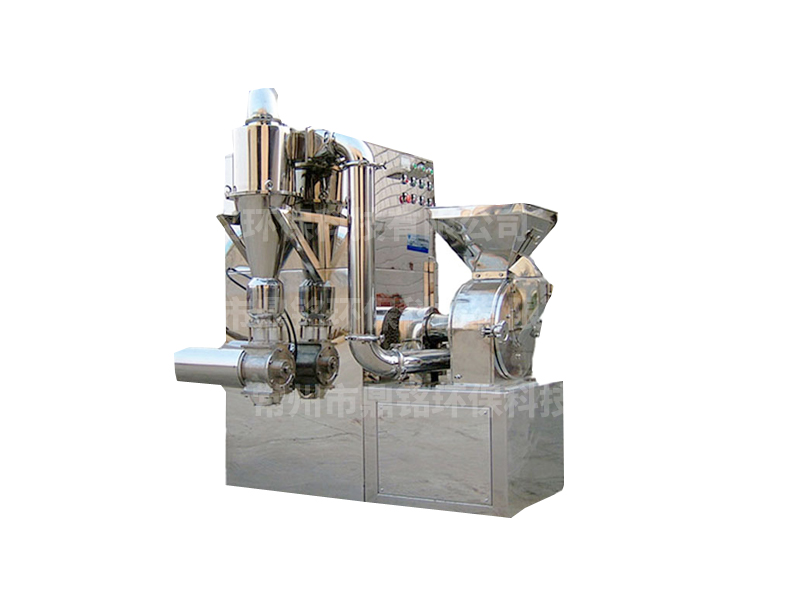

1. This crushing unit consists of a crusher, an ESC material collection box, and an ESC vacuum cleaner. Resolve the issue of dust flying during the crushing process of materials.

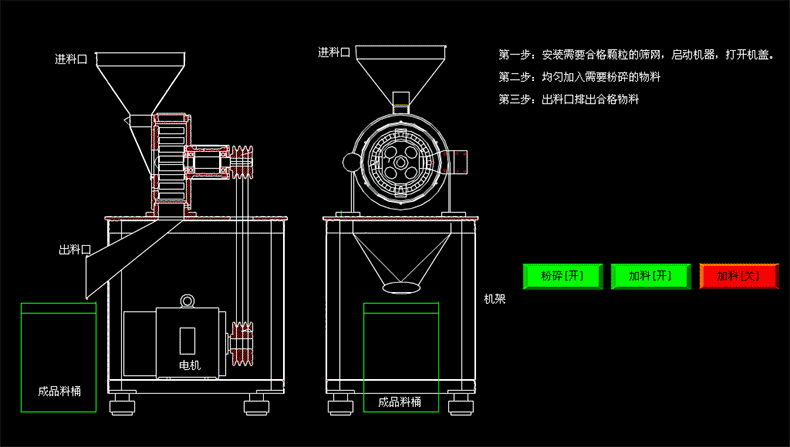

2. The working principle of this machine is that the material enters the crushing chamber and is crushed by the impact, shear, friction, and mutual impact of the teeth between the high-speed rotating movable and fixed toothed discs. After being screened by a sieve, it becomes the required powder.
3. The crusher, material collection box, and vacuum cleaner of this crushing unit are all made of stainless steel materials. Meets the requirements of "GMP" for drug production.

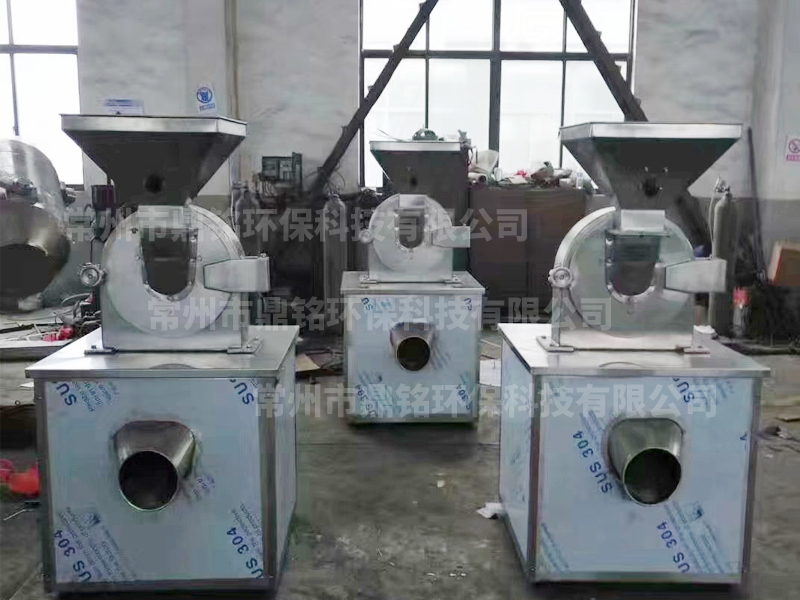

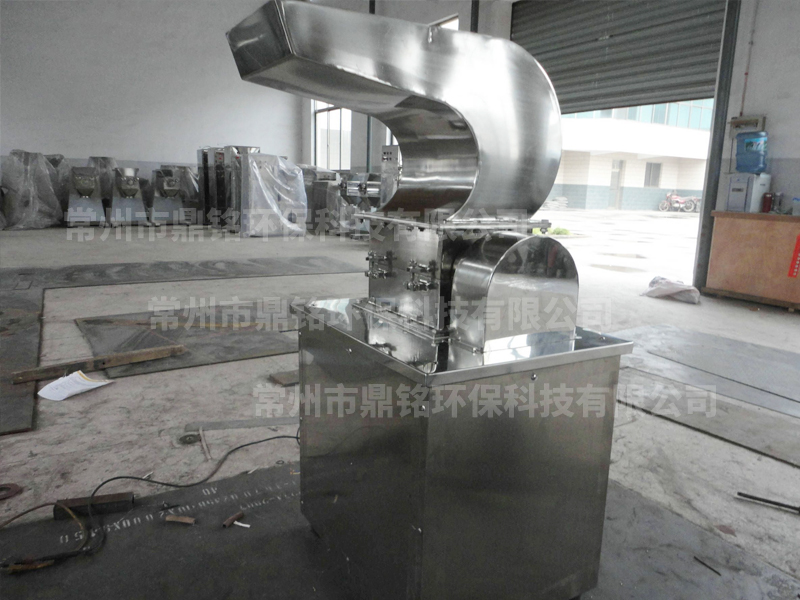

product demonstration

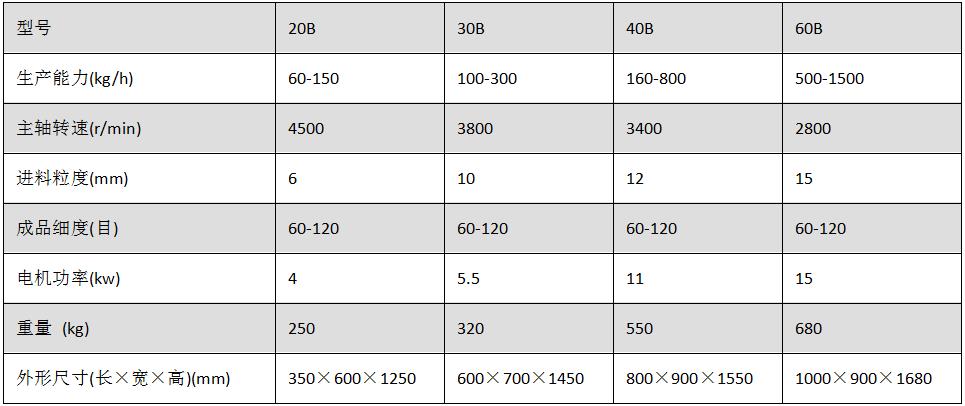

Technical Specifications
