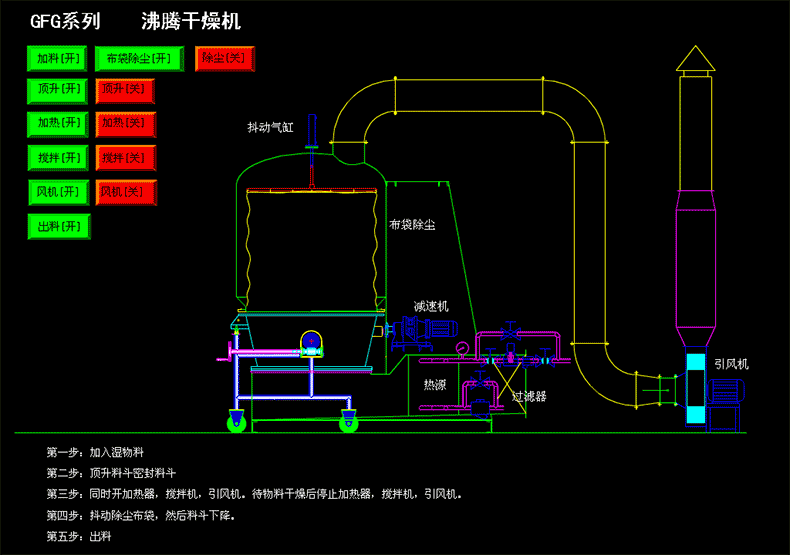

After being heated and purified, the air is introduced from the bottom by the induced draft fan and passes through the hole plate of the hopper. In the studio, fluidization is formed through stirring and negative pressure, and the water evaporates rapidly and is carried away by the exhaust, resulting in rapid drying of the material.

Mechanical screw extrusion of particles, swinging particles, wet high-speed mixed granulation particles.
Drying of wet granules and powdered materials in the fields of medicine, food, feed, chemical engineering, etc.
Large particles, small pieces, sticky block granular materials.
Materials such as konjac and polyacrylamide that undergo volume changes during drying.

The fluidized bed has a circular structure to avoid dead corners.
The hopper is set with mixing to avoid the aggregation of wet materials and the formation of channel flow during drying.
Adopting the method of tipping and dumping materials, it is convenient, fast, and thorough, and an automatic feeding and discharging system can also be designed according to requirements.
Sealed negative pressure operation, gas is filtered. Easy to operate and clean, it is a device that meets the requirements of "GMP".
The drying speed is fast, the temperature is uniform, and the drying time for each batch is generally 20-30 minutes.
