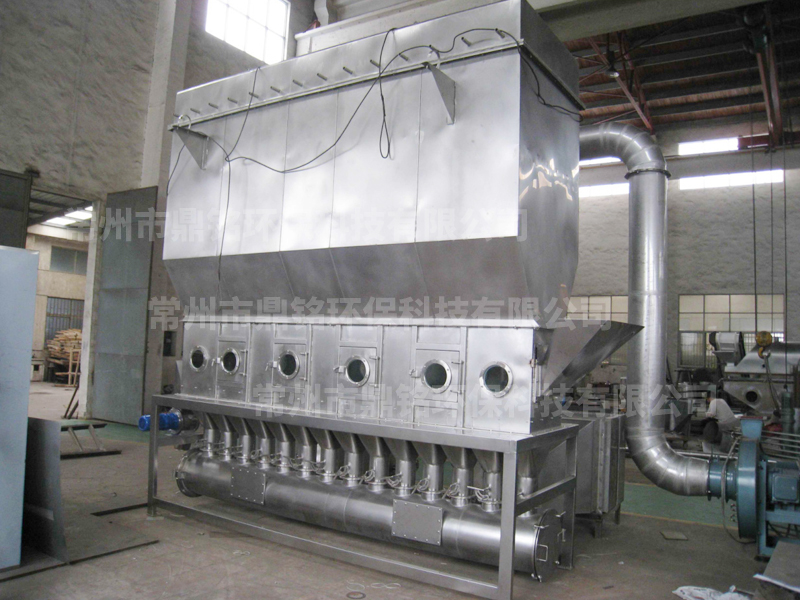

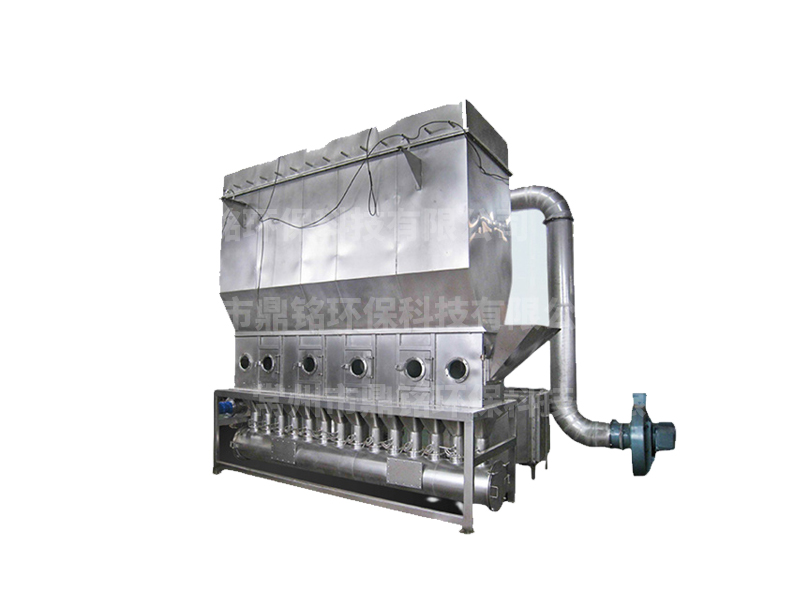

The granular solid material is fed into the fluidized bed dryer by a feeder, and the filtered clean air is heated and sent to the bottom of the fluidized bed by a blower to come into contact with the solid material through a distribution plate, forming fluidization and achieving gas-solid heat and mass exchange. After the material is dried, it is discharged from the discharge port, and the exhaust gas is discharged from the top of the fluidized bed through the cyclone dust collector group and bag filter to recover solid powder and then discharged. Steam, electricity, and hot air stoves can all be equipped (according to user requirements).
It is suitable for drying granular materials, such as raw materials in pharmaceuticals, tablet granules, traditional Chinese medicine granules, plastic resins in chemical raw materials, citric acid, and other powdered and granular materials. It is also used for drying and dehumidifying food and beverage granules, grain processing, corn germ, feed, etc. The particle size of the material can reach up to 6mm, preferably 0.5-3mm.

The fluidized bed dryer can implement automated production and is a continuous drying equipment. Fast drying speed, low temperature, can ensure product quality, meet GMP requirements for drug production, and can be used with steam, electric, and hot air stoves.

Note:
One Feeding method: 1. Star shaped feeding; 2. Star shaped feeding and pneumatic conveying are used together; 3. Belt conveyor; 4. User defined.
II Automated production can be achieved.

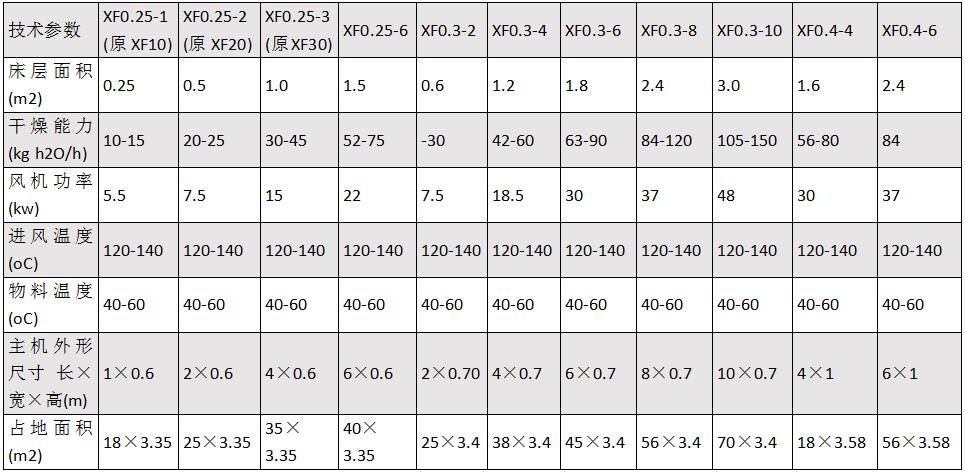

III In addition to the above models, special designs can be made for users.
4 According to different materials, the fan power also varies.
