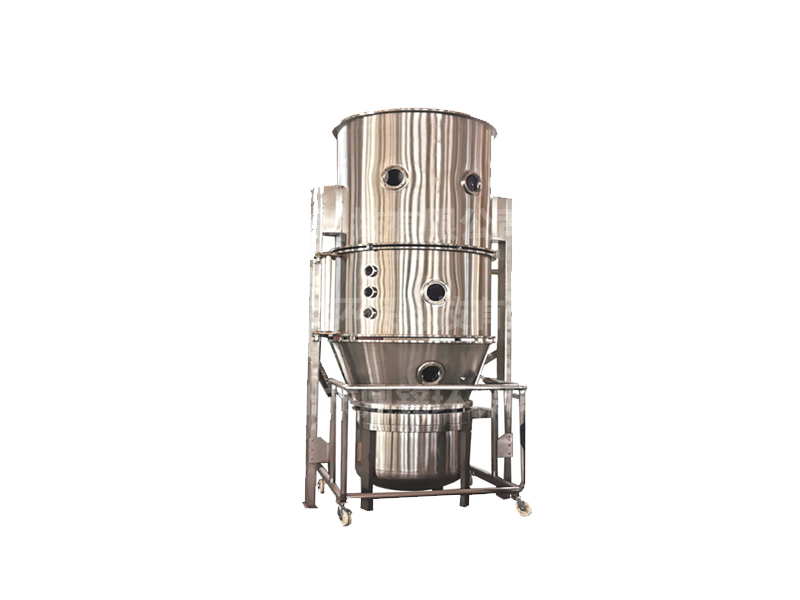

Boiling granulator is mainly used for powder material mixing, granulation, drying, and particle "top spray" coating operations in industries such as medicine, food, and chemical. Such as tablet granules, instant beverages, and seasoning granules. This machine is designed and manufactured according to the standard JB20014-2004 "Pharmaceutical Boiling Granulator".
The mixing granulation drying step method meets the process requirements.
Double capture filter bag system ensures thorough dust cleaning.
Multi fluid atomizer ensures uniform particle formation and extremely low powder content.
Optional 2 bar explosion-proof design.
Design, manufacture, and layout engineering configurations in accordance with GMP standards.
Project specifications | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 | 800-1000 | ||
Volume of raw material container | L | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 550 | 670 | 1000 | 1500 | Design according to user requirements | |
production capacity | Kg/batch | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 | ||
steam | pressure | Mpa | 0.4-0.6 | ||||||||||||
consumption | Kg/h | 10 | 18 | 35 | 60 | 99 | 120 | 130 | 140 | 161 | 180 | 310 | 400 | ||
fan power | kw | 3 | 4 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 22 | 30 | 45 | ||
electric heating power | kw | 6 | 9 | ||||||||||||
noise | dB | Fan isolation treatment with noise levels below 75 decibels | |||||||||||||
compressed air | pressure | Mpa | 0.6 | ||||||||||||
consumption | m³/min | 0.3 | 0.3 | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | ||

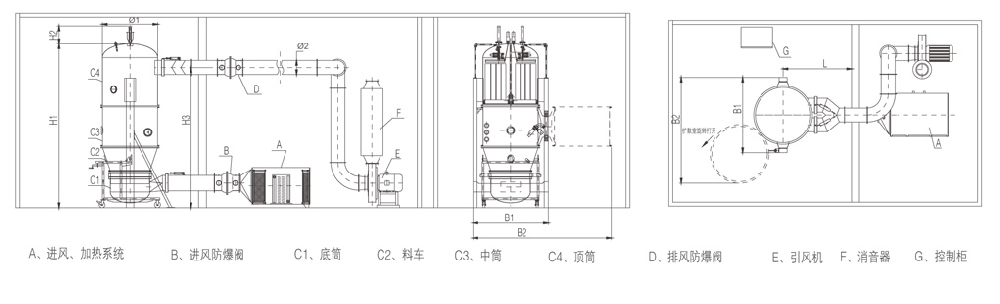

host size | H1(mm) | 2600 | 2600 | 2100 | 2250 | 2250 | 2850 | 2850 | 2850 | 3050 | 3300 | 3500 | 3850 | ||
H2(mm) | 250 | 320 | 420 | 490 | 540 | 590 | 640 | 690 | 790 | 890 | |||||
H3(mm) | 1900 | 2050 | 2050 | 2600 | 2600 | 2600 | 2600 | 3000 | 3280 | 3630 | |||||
B1(mm) | 640 | 740 | 1010 | 1160 | 1320 | 1460 | 1560 | 1660 | 1760 | 1860 | 2060 | 2260 | |||
B2(mm) | 1500 | 1800 | 2060 | 2460 | 2660 | 2800 | 3060 | 3260 | 3660 | 4060 | |||||
Ø1(mm) | 300 | 400 | 550 | 700 | 860 | 1000 | 1100 | 1200 | 1300 | 1400 | 1600 | 1800 | |||
Ø2(mm) | 150 | 180 | 180 | 180 | 250 | 280 | 280 | 280 | 315 | 315 | 355 | 385 | |||
L(mm) | 850 | 1000 | 1100 | 1250 | 1530 | 1530 | 1530 | 1650 | 1650 | 1650 | 1750 | 1850 | |||
All parameters are for reference only. Depending on the material situation, our company reserves the right to make changes without prior notice.
