Fluidized bed coating machine is a new type of particle coating equipment that organically combines fluidization coating technology and spray technology. It is widely used for film slow and controlled release, skeleton slow and controlled release capsules, pill coating, particle and powder coating.
1. The bottom jet state is transformed, and the material has a certain regular running trajectory, thus obtaining a uniform and continuous coating film.
2. Powder, granule, pill masking, moisture-proof, anti-oxidation, waterproof, heat-resistant, color isolation and other coatings.
3. No loss of coating materials and low production costs.
4. The route of fog particles to materials is short, so there is no danger of "spray drying".
5. Cylindrical acceleration container or inverted cone deceleration design, capable of coating particles, large particles, small particles, and pellets.
6. The material has excellent dispersibility and no adhesion phenomenon.
Project specifications | 5 | 15 | 30 | 60 | 120 | 200 | 300-800 | ||
feeding amount | Kg/batch | 4-6 | 10-20 | 25-40 | 40-80 | 80-150 | 150-250 | Design according to user requirements | |
Raw material container capacity | L | 15 | 50 | 100 | 220 | 360 | 650 | ||
fan power | Kw | 4 | 5.5 | 7.5 | 15 | 18.5 | 22 | ||
compressed air | pressure | Mpa | 0.6 | ||||||
consumption | m³/min | 0.4 | 0.6 | 0.9 | 1.3 | 1.8 | 2.4 | ||
steam | pressure | Mpa | 0.4-0.6 | ||||||
consumption | Kg/h | 9KW | 64 | 85 | 181 | 250 | 330 | ||

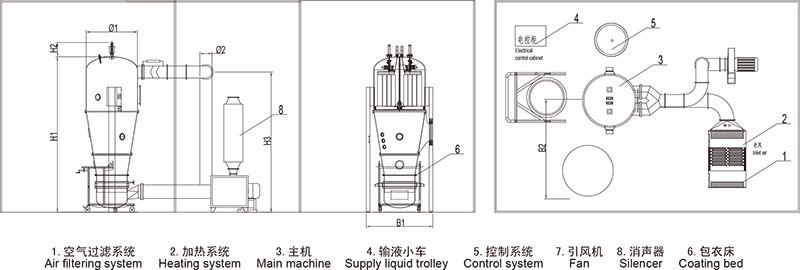

host size | H1(mm) | 2600 | 2850 | 3150 | 3250 | 3500 | 3800 | ||
H2(mm) | 340 | 490 | 590 | 790 | 890 | ||||
H3(mm) | 2630 | 2930 | 3020 | 3280 | 3580 | ||||
B1(mm) | 1010 | 1160 | 1460 | 1660 | 2060 | 2260 | |||
B2(mm) | 1560 | 1860 | 2460 | 2860 | 3660 | 4060 | |||
Ø1(mm) | 550 | 700 | 1000 | 1200 | 1600 | 1800 | |||
Ø2(mm) | 180 | 250 | 250 | 280 | 280 | 315 | |||
L(mm) | 850 | 1550 | 1700 | 1800 | 2000 | 2100 | |||
All parameters are for reference only. Depending on the material situation, our company reserves the right to make changes without prior notice.
