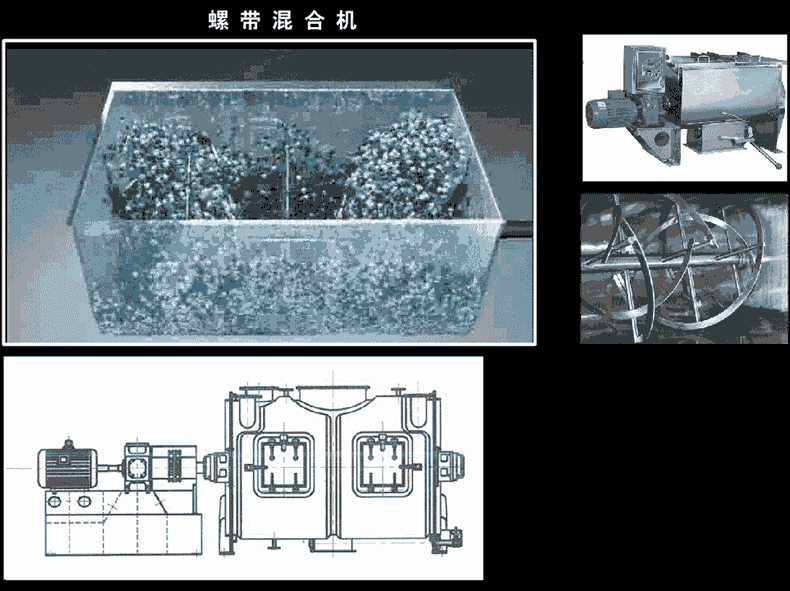

The horizontal screw belt mixer is applied to the mixing of solid (i.e. powder to powder) and solid liquid (i.e. powder to slurry) materials such as dry mortar, putty powder, chemicals, putty paste, real stone paint, ceramics, refractory materials, etc. It can also stir paste like, viscous or high specific gravity materials.
model | Motor powerkw | total volumeM3 | spindle speedr/min | Mixing quantitykg | Overall dimensions | Equipment weight |
WLDH-0.5 | 5.5 | 0.5 | 63 | 150~350 | 2372*812*1272 | 1050kg |
WLDH-1.0 | 11 | 1.0 | 43 | 300~700 | 2700*1036*1574 | 1760Kg |
WLDH-2.0 | 15 | 2.0 | 33 | 600~1400 | 3356*1236*1774 | 2500Kg |
WLDH-3.0 | 18.5 | 3.0 | 33 | 900-2100 | 3356*1336*2024 | 3400Kg |
WLDH-4.0 | 22 | 4.0 | 33 | 1200-2800 | 4210*1414*2108 | 4200Kg |
